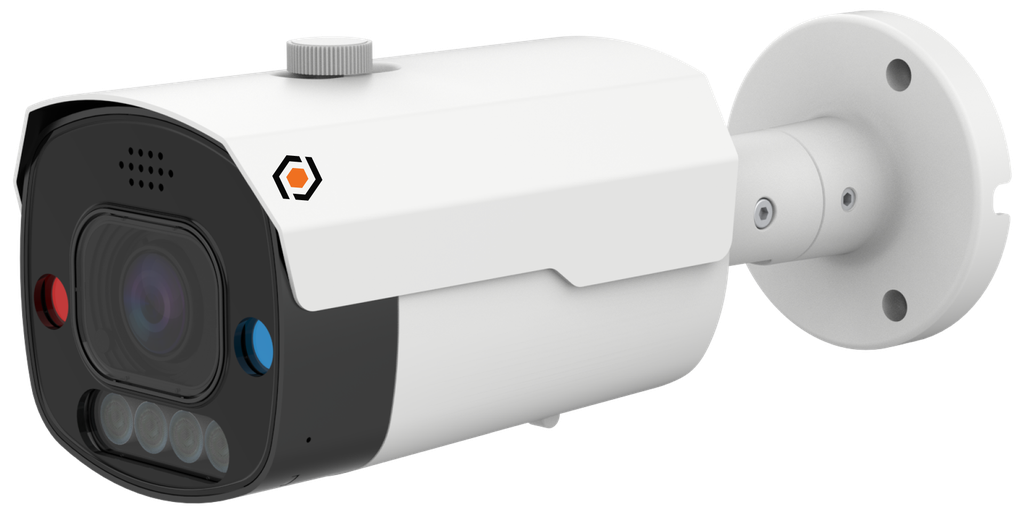

XB7ZATV2812IP5MP-AI

http://cloud232507.mywhc.ca:8069/web/image/product.template/79/image_1920?unique=a297e74
  • Icon MICRO SD CARD SLOT UP TO 256 GB
  • Icon WATERPROOF & DUST-TIGHT
  • Icon 2.8-12MM MOTORIZED LENS
  • Icon ALARM/AUDIO IN/OUT
  • Icon TWO-WAY COMMUNICATION
  • Icon SEE COLOR AT NIGHT
  • Icon DETERRENCE LIGHTS AND SIREN
  • Icon 5MP RESOLUTION
  • Icon IR UP TO 50M
  • Icon ONVIF COMPLIANT (G/M/S/T)
FIND A DISTRIBUTOR FIND AN INSTALLER
NDAA Onvif GST CE FCC
Download the Smart Guardian App
APP STORE GOOGLE PLAY
(0 review )

X BULLET | 5MP | LENS 2.8-12MM MOTO | TOTAL VIEW | ALARM AUDIO IN/OUT | SPK/MIC/DET | A.I | IP67 | NDAA


PRODUCT SPECIFICATIONS

OPERATIONAL
IR LED 4
Warmlight 4
Red & Blue Light 2 (1 Red & 1 Blue)
IR Viewable Length Up to 50m
Warmlight Viewable Length Up to 30m
Type Of Complementary Light Default warm light, switchable infrared light
Motion Detection Off/On (8 Levels)
Wide Dynamic Range WDR
Digital Noise Reduction 3D DNR
Image Setting Day&Night Mode/Full Color Mode/Schedule
White Balance Auto/Manual
Electronic Shutter Speed 1/5 ~ 1/20000s
On-Board Storage Micro SD slot, up to 256GB
Alarm 1 input, 1 output
Audio Built-in microphone & Speaker; 1 input (RCA), 1 output (RCA)
Custom Voice Yes
Hardware Reset Yes
Smart Features Rare Sound Detection (SD) , Perimeter Intrusion Detection (PID), Face Detection (FD), Stationary Object Detection (SOD), Crowd Density Detection (CD), Human&Vehicle Detection (PD&VD), Line Crossing Detection (LCD), Queue Lenght Detection (QD), Heat Map (HM), Cross Counting (CC), License Plate Detection (LPD)
NETWORK
Ethernet RJ45(10/100BASE-T)
Video Compression Format H.265/H.264
Resolution Mainstream @30fps 5MP(2880x1620), 4MP(2560X1440) 3MP(2304x1296), 1080P(1920x1080), 720P(1280x720 Substream @30fps 720P(1280x720),VGA(640x480),QVGA(320x240) Mobile Stream @30fps VGA (640x480), QVGA (320x240)
Video Quality Adjustment 256Kbps ~ 8Mbps
Bitrate Control Method CBR/VBR
IP IPv6
Protocol TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP
Security IP address filter;complicated password; Authenticated username and password
Application Programming Interface ONVIF( Profile S/G/T)
Compatible Web Browsers IE10/11, Safari V12.1 above, Firefox V.52 above Google chrome V.57 above, Edge V.79 above
GENERAL
Operating Conditions -35 ~ +60°C/less than ≤ 95% RH
Ingress Protection IP67
Input Voltage / Current D12V/POE(IEEE802.3af)
Power Consumption max 8.6W; POE (48V)
Color/material White/Metal
Dimension (WXHXD) 240*86*88mm
Weight Appr. 700g
LENS
Focal Length (Zoom Ratio) 2.8-12mm
Max. Aperture Ratio F No. 1.2
Angular Field Of View 113(W)-35(T)° V
Min. Object Distance 1.5m
Lens Type Motorized Ø16.7
VIDEO
Imaging Device 1/2.7”
Effective Pixels 5MP 2880 (H) x 1620 (V)
Scanning System Progressive CMOS
Min. Illumination Color 0.002lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON

DOWNLOAD

DATA SHEET
EN_DATASHEET_XB7ZATV2812IP5MP-AI_2024-10-01.pdf Download
FR_DATASHEET_XB7ZATV2812IP5MP-AI_2024-10-01.pdf Download
FIRMWARE
V31_Firmware_31.35.8.2.2_2022-04-18 Download
V31_Firmware_31.35.8.2.2_2022-07-01 Download
V31_Firmware_31.35.8.2.2_2022-10-25 Download
V31_Firmware_31.35.8.2.3_2023-04-18 Download
V31_Firmware_31.35.8.2.4.1_2024-08-08 Download
V31_Firmware_31.35.8.2.4_2024-01-10 Download
V31_Firmware_31.35.8.2.5_2023-06-05 Download
